Exploring Earth’s Displacements using InSAR data

Our planet Earth is a continuously transforming landscape. From the constant shift of tectonic plates to the subtle movements of sediment, the surface beneath our feet is seldom still. These movements, triggered by a variety of factors such as earthquakes, volcanic eruptions, melting glaciers, and even human activities, shape the world’s surface. But how do we keep track of these changes, especially when they span vast areas? Satellite technology comes to the rescue, especially Interferometric Synthetic Aperture Radar (InSAR).

InSAR technology in a nutshell

At its core, InSAR is a high-tech method that utilizes satellites to monitor the Earth’s surface. Here’s how it works: a satellite emits signals towards the Earth. Then the signals bounce back and are captured by the satellite. The time it takes for these signals to return provides critical data. By making multiple passes over a region, engineers can detect even minor shifts in the terrain. This process yields what’s known as an interferogram, a visual representation full of colorful fringes, each signifying terrain movement. A notable example is from the aftermath of the 2016 Kumamoto earthquake in Japan, showcased through imagery from the Sentinel-1 satellite.

Interferograms are intriguing, displaying movements through a color scale linked to the phase shift of waves. Initially, these images are wrapped, limiting the clarity of the changes. Through a technique known as unwrapping, these interferograms are transformed, presenting the shifts in a more comprehensible metric form, thereby aiding in analysis and decision-making.

Interferogram and metric displacements – aftermath of the 2016 earthquake in Kumamoto, Kiusiu, Japan. Source: Alaska Satellite Facility

SAR processing – DIY methods

The emergence of SAR technology has significantly democratized access to Earth observation data, moving it from the exclusive realm of experts to the public domain. Initiatives like the Alaska Satellite Facility have opened the gates to a wealth of radar images, enabling anyone with internet access to explore the nuances of our planet’s surface.

Supporting this democratization, the European Space Agency’s Sentinel Application Platform (SNAP) plays a crucial role by transforming complex SAR data into user-friendly formats. SNAP, alongside its comprehensive guides, is designed for a broad user base, ensuring that individuals, regardless of their expertise level, can understand and utilize satellite data effectively.

This shift towards open access has multiple benefits. It promotes a well-informed public, enriches scientific research by incorporating diverse perspectives, and supports practical applications in emergency response, urban planning, and environmental management. Moreover, it serves an educational purpose, providing students and teachers with real-world data for learning and research.

European Ground Motion Service

An ambitious initiative in Earth observation is the European Ground Motion Service (EGMS), a part of the Copernicus project, often described as Europe’s eyes on our planet. EGMS isn’t just about monitoring; it’s about understanding and analyzing. It specializes in tracking ground movements. For instance, detecting significant uplifts of the Earth’s crust in Scandinavia, as a result of isostatic rebound. The isostatic rebound is the gradual rising of landmasses after the removal of a heavy load, such as melting glaciers, due to the Earth’s crust readjusting to the reduced weight. The velocity of uplifts can reach a value of 20 mm/year! What makes EGMS invaluable in this context is its precision – the service is capable of detecting displacements as small as one millimeter. This level of detail is critical, especially in earthquake-prone regions where even small shifts can have massive implications on infrastructure, water supply, and overall safety.

EGMS. Isostatic rebound

Isostatic rebound on the Scandinavian Peninsula. Source: EGMS

What sets EGMS apart is its user-centric features. The service doesn’t just provide raw data; it empowers users to delve deeper. One of the key functionalities is its ability to generate detailed charts for each measurement point. This feature allows for a granular analysis of ground movements over time, providing insights into patterns, trends, and anomalies that might go unnoticed in broader datasets.

Moreover, recognizing the diverse needs of its users, EGMS offers the capability to download datasets in .csv format. This accessibility ensures that researchers, planners, and the curious public can integrate this vital data into their own analyses, models, or reports, bridging the gap between raw data and actionable knowledge. With updates rolling out annually, EGMS stands as a dynamic, evolving tool designed to keep pace with the Earth’s rhythms and changes, ensuring that anyone interested can stay informed about the shifts and shakes of the surface of our planet.

EGMS service - overview

European Ground Motion Service – main page. Source: EGMS

Case study: How to assess the impact of the 2021 Arkalochori earthquake in Crete

EGMS stands as a great source of data for those studying the dynamic nature of our planet, especially in areas vulnerable to seismic activities like Crete, Greece. This Mediterranean island, situated at the unstable intersection of the Eurasian and African tectonic plates, serves as a prime example of how the Earth’s forces shape our world. On 27th of September 2021, the earthquake struck the island of Crete, with the epicenter located southeast of Heraklion (35.3°N 25.3°E).

EGMS - a look in Crete Island

Ground displacement in Crete. Source: EGMS

Measuring 6.0 Mw with a maximum intensity of VIII (Severe) on the Modified Mercalli Intensity Scale, this earthquake showcases the EGMS’ capabilites. This event on 27.09.2021 was not just another statistic; it brought significant vertical shifts to the island’s landscape. The ground on Crete has decreased by almost 20 cm! The data provided by EGMS service can help in identifying areas exposed to hazards. Thanks to its features users may check a specific day where a large displacement of the terrain occurred. Moreover, data visualization allows for the analysis of displacement velocity.The case of Crete underscores the service’s role not just in crisis situations but also in long-term planning and preparedness.

InSAR measure point. EGMS

Vertical displacement after the earthquake. Source: EGMS

To validate measurements from EGMS, radar images can be processed in SNAP software. But how do we know which satellite dataset is appropriate for determining movements on the earth’s surface after incidents like earthquakes?

When choosing an appropriate pair of images to process InSAR data, a baseline chart may be helpful.  The idea is simple: the satellite’s position from primary measurement should be almost identical to the satellite’s position from secondary measurement. The perpendicular distance between the positions of the two satellites ought to be close to zero. Naturally, the primary and secondary satellite flyby must occur appropriately before and after the incident. The chart below shows the configuration of satellites in the period of September to October 2021. The black dot refers to the position of satellite Sentinel-1 on 6 October 2021. The red dot refers to the position of the satellite on 24 September 2021. The perpendicular distance between these positions is about 2 meters. What was the most crucial was the fact that the two time series were right before and after the earthquake in Crete.

InSAR processing - baseline chart

Baseline chart

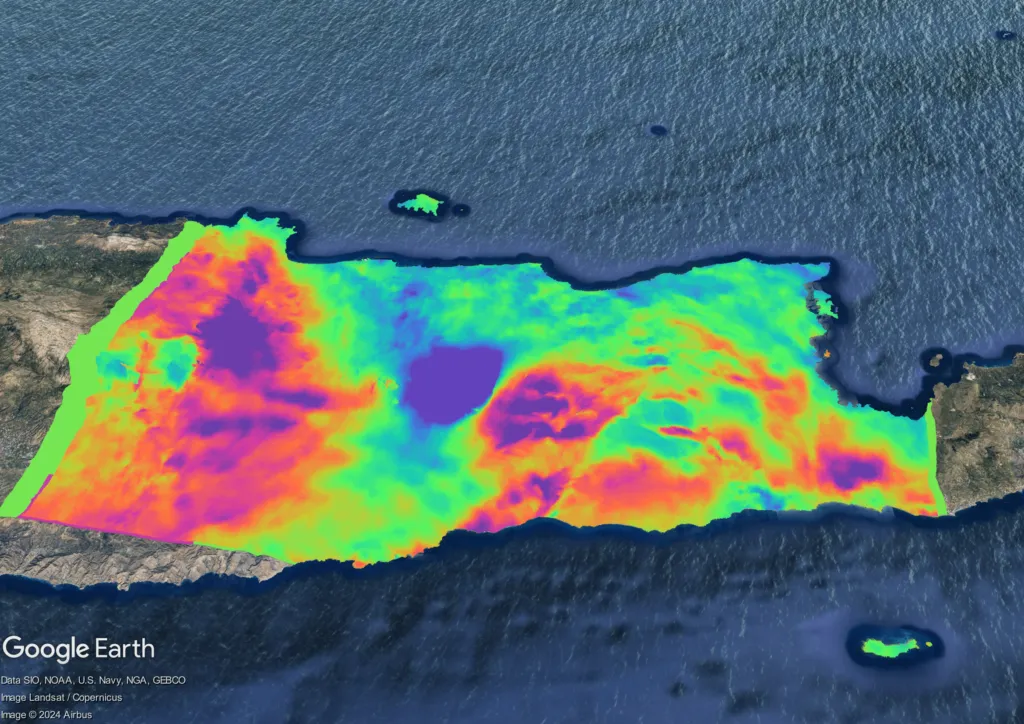

Then the workflow can continue. Intermediate results, like wrapped and unwrapped interferograms, show that there were some displacements right after the earthquake. Unfortunately, the map legends are not reliable – values on the scale are connected with wave phase shift.  For a wrapped interferogram, there is a noticeable range of 2π. Eventually, the clearest visualization is to represent displacements on a metric scale. Comparing EGMS products and SNAP processing the results are similar. There was a subsidence of up to 20 cm in the area of the earthquake epicenter. The below images show the difference between wrapped interferograms and metric displacement. It is worth paying attention to the values ​​​​on the scale.

Crete case-study. Interferogram and metric displacements

The importance of InSAR data

The aforementioned examples underscore the indispensable nature of InSAR data in modern Earth observation. In an era where environmental and geological changes are more dynamic than ever, InSAR provides a dependable tool for monitoring and responding to our planet’s shifts. Whether for scientific research, disaster response, or environmental monitoring, the capabilities of satellite interferometry are transforming our understanding of the Earth’s surface.

Through the EGMS, researchers and decision-makers can access before-and-after comparisons of InSAR data, providing clear evidence of ground movements. This is not just about identifying areas of displacement; it’s about understanding the scale and direction of these shifts. Such detailed information is crucial for emergency response, urban planning, and rebuilding efforts post-disaster.

In conclusion, as we continue to witness the Earth’s ever-changing landscape, technologies like InSAR are essential in keeping us informed and prepared. By mastering the power of spaceborne radar, we can better understand our planet’s dynamics, ultimately leading to more informed decisions and resilient societies.
