Drone Aerobatics – SenseFly Mapping the Impossible!

In recent times one of the most interesting innovations in mapping technologies is the technology of tiny civil drones.

For Sometimes now, I and a friend have been foraging the web in search of the best of this technology and contemplating seriously on acquiring one as soon as possible.

For me, SenseFly is making a lot sense right now as they have added additional solution for capturing amazing oblique aerial images without the use of the camera gimbal.

SenseFly’s eBee drone and Swinglet CAM designed for mapping missions are now able to quickly acquire great oblique images to complement your mapping project courtesy of the drone aerobatics solution inbuilt.

These amazing oblique images can become very handy for additional documentation about the project and for reporting.


Source: SenseFly

According to parrot.com, this patent pending technology is based on a propriatary control algorithm that takes oblique images of photo targets without the need of a camera gimbal, enabling senseFly’s ultralight mapping drones to take aerial shots with up to 45° inclination from the photo target.

The algorithms running onboard the drone’s autopilot automatically place and orient the drone based on the defined image resolution and inclination (0-45°) selected by the operator. The drone then adapts its trajectory according to local wind and target altitude.

Having a system that positions the camera autonomously with respect to the photo target enables senseFly’s drone systems to take precise oblique images without the need for live video feedback or a camera gimbal.

As these new techniques do not require any hardware changes, this novelty is freely available to the full community of eBee and swinglet CAM (late 2012 model) users with the new release of eMotion 2.2.

Beside creating stunning visuals, senseFly’s latest release of Postflight Terra 3D will enable users to go one step further and add these oblique images to a standard mapping flight, adding visibility to facades and vertical surfaces.

A word from the CTO, video below:

Source: Parrot.com

Did you like this post? Read more and subscribe to our monthly newsletter!

Say thanks for this article (0)
The community is supported by:
Become a sponsor
#0.30m #Business #Construction #Drones #Featured
What Construction KPIs Can Be Measured Using Satellite and Drone Data?
Aleks Buczkowski 12.7.2023
#Agriculture #Environmental Protection #Geospatial analytics #Geospatial for Good #Orora Technologies #Satellite tasking #Vegetation Management
Building Early-Warning and Monitoring Systems to Mitigate the Impact of Climate-Related Emergencies
Hassan Safieddine 05.15.2024
#< 0.10m #10m #1m #Agriculture #Construction #Drones #Environment #Environmental Protection #Featured #Multispectral #Optical #SAR #Science
Are Drones and Satellites Competing or Complementary as Sources of Geospatial Data?
Aleks Buczkowski 01.19.2024
Next article

GNSS, Space Politics and Future of PNT – based Businesses (LBS)

Please consider, if I sounds stupid. when I first heard about GIS I thought ESRI ArcGIS is GIS later on i figured out how dull I was. Then when I heard about GPS I thought it’s a wing of Geospatial Technologies. Damn me, it’s a Global Navigation Satellite System (GNSS) by USA Military, which is available for civil use for free. What if GPS is the only satellite based Position, Navigation, Time (PTN) service? what if that service is not available for civil use anymore? The answer is simple. Location Based Service – the end, Navigation – the end, no “current location” in GNSS dependent Smart phones. The consequence will be severe; We will be lost.

So, for a sustainable and reliable Location Based Services (LBS) or time stamp during bank transaction or navigation services we need non-monopolistic, cooperative, reliable and accurate GNSS Services. while surfing www, regarding these issue I have found things pretty exciting, interesting and worth to know, though all these things/happening staged behind the curtain, in policy level; maybe no direct implication but for sustainability good to know the rooted problem. So, Here the story starts. Story behind answering the question: How secure the future PNT dependent businesses are?

Global Navigation Satellite Systems (GNSS):

GNSS was all about power and control; control over satellite navigated arms, control over global instability, control over economy, control for security and safety; eventually sounds like Military and here comes the space politics. First, Satellite Navigation System named Global Positioning System (GPS) was found in 1973 by USA and became fully operational in 1995. GPS has a military origin and has been used extensively either in combat situation or in nuclear detection missions. later on, in 1987 GPS been made available for international civil use but the ultimate authority to decide GPS policy still belongs to the President, only. Besides USA, Russia is another global player in this satellite navigation market. (A satellite navigation can provide autonomous geo-spatial positioning with global coverage but requires a satellite constellation of minimum 24 satellite). Under the name GLONASS, Russia has 24 operational satellite in the GLONASS constellation science  January 1996.

There are other two critical and crucial global players in GNSS market. Europe and China. China has 16 Satellite in the Compass (Beidou) constellation science April 2007 and Europe has 4 Satellite in the Galileo constellation science October 2012. these two constellation are regionally operational but tends to become global. Besides these four global player there are regional players as well those are India and Japan. Following table will provide the current GNSS status:

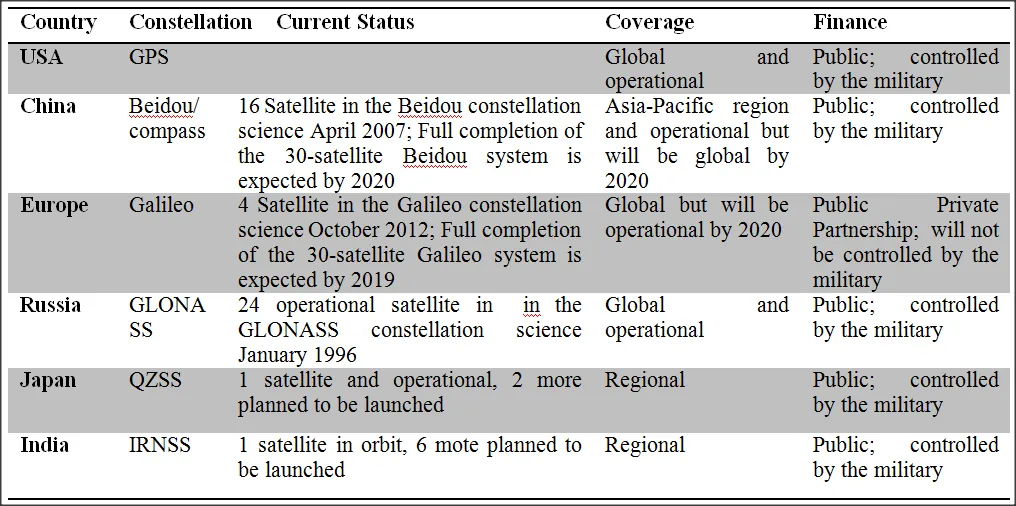

Different GNSS Status
