Using geospatial analysis to identify where people are and understand who is being ‘left behind’

As a GIS Technician focussing on fragile and complex environments such as war-torn regions, I am constantly reminded how Geospatial tools and data play an integral part in achieving a more globally sustainable future. In particular, the UN Sustainable Development Group 2030 Agenda commitment to “Leave No One Behind” is usually in the back of my mind when thinking about geospatial for good.

The “Leave No One Behind” promise includes the steps: “identifying who is being left behind and why; identifying effective measures to address root causes; monitoring and measuring progress” (United Nations). This is a great concept, and if achieved will transform the lives of vulnerable individuals. But how is this going to be achieved when you don’t really know where the people are?

My work focuses on some of the most challenging environments, and despite the most conclusive data coming from intergovernmental organisations, there are invariably issues with accuracy, which in hindsight, raises doubts as to whether the data acknowledges where the people are with a reasonable confidence level.

I am constantly dealing with datasets that are not necessarily fit for purpose – whether the data is outdated, missing attributes, or just simply difficult to understand. However, thanks to open-sourced data now becoming more readily available, basic datasets are improving. Open-sourced datasets are fundamental for environments where there is a lack of data, or if there are time and/or budget restrictions. They allow anyone from anywhere to contribute data and to an extent improve it with their knowledge.

Take Afghanistan for example, with a population of approximately 38,041,757 (in 2019) (according to the World Bank), the country has unfortunately had more than its fair share of bad luck. Since 2018, it has been hit by several environmental disasters including droughts, floods, and freezing temperatures (Relief Web). The widespread conflict, COVID-19, and now the unknown political situation, has exacerbated their hardship, and it is only going to get worse.

Just one of those scenarios would have triggered a monumental humanitarian relief response, let alone multiple events occurring at the same time, resulting in internally displaced people (IDPs, those forced to flee their homes within their own country) and severe food insecurity, to name but a few outcomes.

The United Nations has classified Afghanistan as a “Hunger Hotspot”, where at least 12 million of the population are facing food insecurity (Reuters). This is just one of the many challenges being faced by the Afghan people, and with another drought happening right now, time is of the essence. With the food insecurity example, it is critical aid reaches those in need. But with these multiple events happening simultaneously, how are we meant to know who is affected, and then how will a complex relief operation be able to respond to help those who need it most?

In 2019, the company I work for, Alcis, were determined to help find a solution to this fundamental problem of not knowing the true location of the population in Afghanistan. Using high-resolution satellite imagery and building on work the company carried out in 2014, Alcis set out to digitise every domestic compound in Afghanistan ‘from space’. The datasets were manually created with incredible determination, and they have proved to be invaluable as there is no other population dataset as comprehensive as them.

This one single dataset can be combined with other data and used in multiple geospatial analysis tools, devising numerous datasets and further analysis layers. As stated by Muthukumar Kumar “Location data like all data can be used for more than one purpose”, which I will now explore with a few examples.

One of the most practical uses of this dataset is creating a population density layer. Population density layers can be produced at different resolutions and can provide a generic overview of identifying where the most populated or unpopulated places are in an area. This layer is also beneficial to determine flood event impacts, such as estimating those who have lost their homes and become displaced or predicting those who could be at risk from future events and mitigating impacts from this hazard.

Figure 1: Using Alcis’ compound datasets to assess the location of the population change and their vulnerability to flooding in Parwan Province, Afghanistan.

Another example of how we used the compound data was working with the Norwegian Refugee Council in response to the 2018 drought in Northwest Afghanistan. The aim was to assess the human impact of the vegetation deterioration the drought had caused, which resulted in 371,000 individuals being displaced, adding to the approximate 2.6 million IDPs already in Afghanistan (Internal Displacement Monitoring Centre (IDMC)).

The analysis involved our compound data and a crop health deterioration analysis, which involved using the NDVI (Normalised Difference Vegetation Index) of the region. The Alcis’ NDVI is derived from MODIS satellite imagery and is created using Model Builder in ArcPro, which is used as a proxy for crop health. Without the compound data, we could still estimate the areas that were impacted by the drought, but we wouldn’t be able to determine the number or the locations of individuals who were impacted.

Geospatial analysis - 2021 drought in Afghanistan

Figure 2: Using Alcis’ 2019 compounds data, to estimate those who are likely to be affected by the 2021 drought in the northern provinces in Afghanistan.

Furthermore, as we have locations of individual compounds, we can combine them with other point datasets and Open Street Map’s Road data, to use them in the ESRI Network Analyst tool. This tool can generate further in-depth analysis, as it can estimate the time and distance from each compound to a local facility (such as a hospital), as well as calculate the number of compounds within varying ranges of a facility.

This method can help establish where people could be underrepresented, by highlighting the population that cannot reach their closest facility, such as a polling station to cast their vote.

Moreover, knowing how many compounds are within a 2-hour driving range from a health facility, for example, could help the United Nations achieve Sustainable Development Goal 3 – Ensure healthy lives and promote well-being for all ages (United Nations Sustainable Development Goals). The compound data would help health clinics locate everyone in their range and provide efficient, adequate, and appropriate care to them all.

Geospatial analysis - example of using open-sourced data

Figure 3: An example of how using Alcis’ 2019 compounds with open-sourced data, and ESRI tools can produce in-depth geospatial analysis to estimate those who may not have access to health facilities.

The current COVID-19 pandemic poses even more pressing questions that need clear answers to prevent the spread of the virus. These questions may be how many compounds are served by one health centre or is there any part of the population that is not able to reach a health facility.

UNICEF have the significant challenge of globally rolling out vaccines to children, but with COVID-19, they are responsible for the rollout of the new initiative “COVAX“, which is a co-led initiative by GAVI, CEPI, and WHO with the aim of “accelerating the development, production, and equitable access to COVID-19 tests, treatments and vaccines” (World Health Organisation). “COVAX” and many others need to locate where everyone is, not just children, in relation to facilities such as schools. Thus, using the Alcis’ 2019 compound data and the network analyst tool, the setting up of emergency vaccination centres, sending field operators to the correct locations, or other necessary approaches would undeniably ensure everyone had safe access to a vaccine.

Granted, Alcis’ 2019 compound data is only for Afghanistan, but there are examples of in-depth population location data for other regions in the world, such as the work led by the Bill and Melinda Gates Foundation. They provide open-sourced and transparent data such as their African rooftop data. But despite their data providing accurate locations, it is still not enough to determine the location of individuals that are being ‘left behind’ and need assistance elsewhere in the world.

In Afghanistan, there is an unknown element of where or if people have been relocated due to the current political situation or by any other means mentioned previously, both causing internal displacement and further international migration. In response, the challenge in the next few years for providing accurate population data for Afghanistan will be monitoring the change in movement and location. Through identifying the abandoned compounds, establishing the new locations of the resettled population, and the dynamics of IDP camps from satellite imagery, we will make sure that no one is left behind in the forthcoming years.

So what can we do?

Back to the question, how can we as GIS users, carry out “geospatial for good” when we do not actually know where the people are or may not have suitable data for our geospatial analysis? There is potential for GIS users to help solve this issue by creating a decent standard of data through various methods and using it for good. Additionally, as previously discussed, location data has multiple purposes, it is all well and good to spatially know where the population is, but in order to deliver effective analysis and results, you need to also gain an understanding of the situation. The hope is there will be comprehensive population data for those countries or regions that have limited spatial data, so policymakers, GIS analysts, and anyone else who requires the data for analysis would be able to identify where the people are (not who they are) and use geospatial technology ethically and for good.



Say thanks for this article (1)
The community is supported by:
Become a sponsor
#Data source
Next article
#>100m #30m #Environmental Protection #Geospatial for Good #Landsat #Multispectral #Optical #Vegetation Indexes

Looking at the Environment: Climate Change Impacts on the Barisal River Delta Mangroves, Bangladesh, 1988 to 2010

1. Introduction
Normalised Difference Vegetation Index (NDVI) is a widely used indicator to measure changes in vegetation cover spatially and temporally. Reiche et al (2015) and Quern et al (2016) used NDVI to monitor tropical deforestation, for example Guatemalan forests shrinking 9.3% over 8 years. Morawitz et al (2006) researching the positive correlation between rising population density and urban sprawl overlapping with NDVI change. NDVI is used in this study due to the sufficient supporting literature visual ease of false-colour imaging and quantitative abilities to accurately observe mangrove cover dynamics as an impact of climate change.

2. Study Area
The 338992.8 ha study area is at the east of Barisal River delta (BRD), south-central Bangladesh, shown in figure 1. Barisal is covered by complex mangrove tributary systems from the Brahmaputra-Ganges-Meghna delta. Bangladesh’s coastline has a topographic gradient of 0 to 0.23% (Islam et al, 2019), therefore the low-lying mangroves, are highly vulnerable to rising sea level (Iftekhar and Islam, 2004).

On a global scale, mangrove decline is occurring at a rate of 1- 2% a year, on-track for extinction by the end of the 21st century (Alongi, 2015). In addition, more than 3.6 million ha of mangrove forests were lost from 1980 to 2016 (Asbridge et al, 2016) and many more since. Using NDVI, Saravanan et al (2019) researched 166 ha of mangrove forests from 1999 to 2008 in the Muthupet Lagoon region, South India, retreated due to increased anthropogenic activity India and Bangladesh’s rapid population growth of 43% (Lal, 2020) and 37% (Islam and Ahmed, 2017) over 20 years is a comparable temporal range to this study – meaning it can be expected there will be similar effects on the in the BRD and Muthupet Lagoon region mangrove forests.

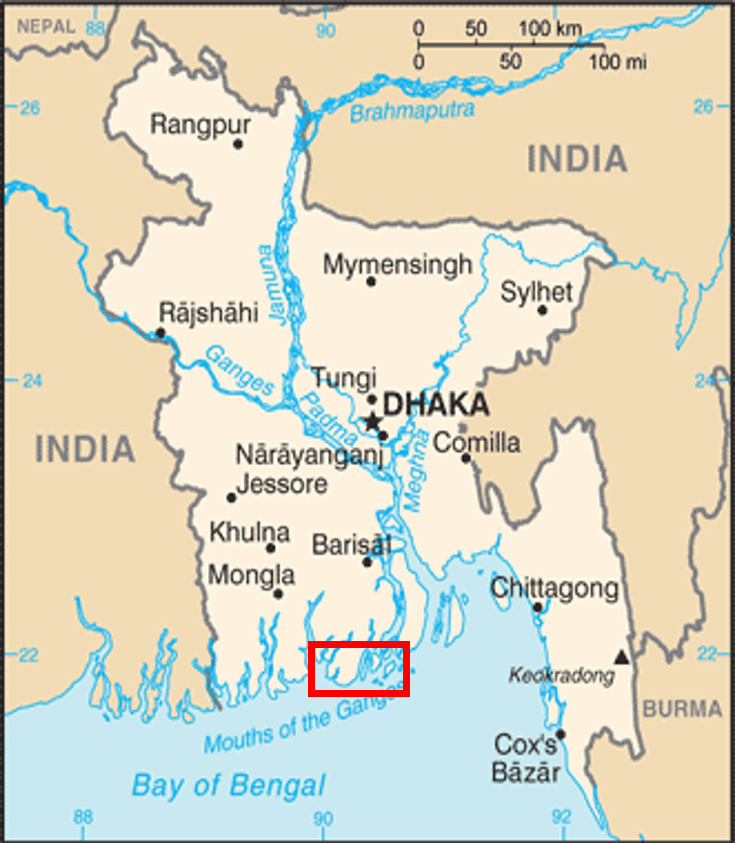

Figure 1. Map of Bangladesh (University of Texas Libraries, 2016) showing location of study area indicated by box.

3. Methodology
To define the study area, Landsat-5 Thematic Mapper (TM) imagery from USGS Earth Explorer was obtained using the data shown in table 1. Landsat-5 has a high spatial resolution of 30m pixels. The study area measures a longitudinal distance of 81.171 km (2702 pixels), latitudinal distance of 41.62 km (1394 pixels) and total area of 338992.8 ha.

Table 1. Critical information needed to replicate TM images defined study area abstracted from Landsat-5 imagery in USGS Earth Explorer (USGS, 2020)

Data Type Value(s)
Date of images 19/02/1988 30/01/2010
Path and row 137 and 045
Cloud cover <10%
Corner coordinates ULx = 182919



ULy = 2446770



LRx = 263040



LRy = 2404980

UTM zone number WGS 84
Critical change threshold values Vegetation increase = >25%



Vegetation decrease = >27%



NDVI is the difference in normalised reflectance between visible red light and NIR (Jensen, 2005) displayed as pixel brightness (Hamylton, 2017). This is determined by the degree of photosynthetically active vegetation, also described as vegetation ‘greenness’ (Wylie et al, 2003).  NDVI is calculated using the following equation: NDVI = (NIR – RED) / (NIR + RED). Output values closer to -1 mean there is a lower pixel brightness/little vegetation and values nearer +1 having a high pixel brightness/abundance of vegetation. There is strong absorption of photosynthetically active radiation (PAR) in blue and red visible light and a small solar maximum brightness peak in visible green light where photosynthesising conditions are optimum for healthy vegetation (Lillesand et al, 2015). NDVI was mapped in figure 4 using the threshold values in table 1. From this, amount of increase or decrease can be calculated as a percent of the total area in table 3.

Table 2. Landsat-5 TM spectral band characteristics and main applications for satellite imaging (Pettorelli, 2013) as well as Median pixel brightness Digital Number (DN) for the two images in this study

Spectral band Wavelength (µm) Spectral range Main applications Median pixel brightness (DN)
Band 1 0.45-0.52 Visible blue Forest differentiation. 88
Band 2 0.52–0.60 Visible green Vegetation reflectance. 40
Band 3 0.63–0.69 Visible red Land covers. 39
Band 4 0.76–0.90 Near infra-red Eliminates soil moisture. 26
Band 5 1.55–1.75 Short wave infra-red 1 Atmospheric penetration. 13
Band 7 2.08–2.35 Short wave infra-red Geological use. 7

Table 2 includes brief summaries of spectral bands 1-5 and 7 used in this study to map NDVI. Band 6 is not required as its main application is thermal mapping. The 6 bands are stacked so produce a true-colour image multi-dataset. False-colour images figures 3(a) and 3(b) were created using a multispectral false colour composite: Band 4 (near infra-red (NIR) displayed as red, band 3 (visible red) displayed as green and band 2 (visible green) displayed as blue.

3. Results
Figures 3(a) and 3(b) are NDVI false-colour composite subset images of the Barisal mangroves in 1988 and 2010. The false red colour is vegetation.

River Delta, Climate change analysis

Figure 3(a).1988 false-colour image, 81.17 km wide. False red colour displaying high amounts of vegetation and green and blue showing little vegetation cover. Orientated north to top of image

River Delta, Climate change analysis

Figure 3(b). 2010 false-colour image, 81.17 km wide. False red colour displaying high amounts of vegetation and green and blue showing little vegetation cover. Orientated north to top of image

Figure 4 is particularly important for monitoring change in vegetation cover, as it highlights the change of an increase or decrease in vegetation. This is displayed as quantitative data in Table 3, showing change in NDVI as a percentage and in ha. This data will be used as the basis of section 4, discussion.

River Delta, change detection NDVI map - chlimate change results

Figure 4. Change detection NDVI map from 1988 to 2010 superimposed by highlight change map, where green shows areas where NDVI increased >25% and red shows areas where NDVI has decreased >27%. White box highlights area of high mangrove decrease. Image 81.17 km wide, orientated north to top of image

Table 3. Quantitative data from figure 4 to show NDVI change in area (ha to 1 DP) and as a percentage of total area (% to 2 DP)

Significant decrease Insignificant change Significant increase Total area
Area (ha) 9472.7 319222.9 10297.2 338992.8
Percentage of total area (%) 2.79 94.17 3.04 100

4. Discussion
In Table 3, 2.79% of the total study area experienced a decrease in mangrove cover across the BRD between 1988 and 2010. 3.04% of the study area does not support this and instead shows an increase in mangrove cover. However, there is only a 0.25% net increase, meaning the possible causes of these changes must be analysed on a specific area scale as the change is not significant enough to make an overall judgement.

Significant decrease in mangrove cover applies greatly to the area of the white box on figure 4 because there is a net decrease of 15.3% (35.0% of overall decrease). As introduced, anthropogenic global warming and the effects on ecosystem supporting services contribute to mangrove decrease in Bangladesh. Over the last century, global sea level has risen around 2 mm, with one half of this due to thermal expansion – the increased volume of oceans due to addition of melted ice (Dyurgerov, Meier, 1997). Sea level rise in the Bengal delta undoubtedly exceeds the global mean, being sometimes as high as 25 mm per year (Ericson et al, 2006).

Bangladesh’s high topographic coastline means a 25 mm sea level rise is likely to submerge the low-lying mangroves, hence the decreases in mangrove cover across the study area. On top of this, submergence of mangroves is exacerbated by urban and agricultural expanse (Saintilan et al, 2014) because a physical barrier is created to prevent mangroves ‘back stepping’ inland. Figures 6(a) and 6(b) suggest evidence of these barriers by contrasting false-colour composites.

River Delta, false-colour composite images

Figures 6(a) and 6(b). 1988 (6a) and 2010 (6b) false-colour composite images, 20734.5 km across, cropped from the study area. Shows labelled physical barrier in highlighted black box. Orientated north to top of image

Dam creation, irrigation and deforestation alter supporting ecosystem services, affect the BRD mangroves.  Diverting fresh surface waters for irrigation increases saline water levels in the river delta by moving the saline interface inland (Sahagian, 2000). If salinity is too high, mangrove productivity falls as excessive filtering is too energetically expensive (Santini, 2015).

Coastal protection of mangroves may explain the 3.04% significant increase in NDVI. 39.4% of Barisal’s population is at the upper poverty line, compared to a country average of 31.5% (World Bank, 2010). Researchers like Dasgupta et al (2019), Loughland et al (2020) and Hu et al (2020) have realised the benefits mangrove protection and afforestation has for climate mitigation as well as socio-economics in Bangladesh. In turn, deprived regions like Barisal will benefit as agricultural land is less likely to be flooded -increasing crop yields (this extent of success can be measured by NDVI).

Another driving factor for mitigation is to increase biodiversity. In Kuwait, Loughland et al (2020) studied a mangrove planting scheme with growth success up to 62% of which 57% is in the intertidal zone, prone to climatic flooding (Al-Nafisi et al, 2009). Hu et al (2020) used a restoration potential index (RPI) to conclude that across China, 16,800 ha of land had mangrove restoration capacity. However, 75% of this area became unsuitable for restoration, proving the short-term volatility of mangroves. Nevertheless, if the increase in mangrove cover across the BRD is due to afforestation, it could be questioned why the whole Barisal study area was not protected, since there are larger mitigation schemes in other cases.

NDVI imaging like figure 4 can be used to design planning strategies for Non-Governmental Organisations, charities and private sectors with an aim to restore mangrove forests. Additionally, mapping NDVI matters strongly in the context of climate change. The Intergovernmental Panel on Climate Change estimated an average global sea level rise of 30 to 60 cm by 2100, due to emissions promoting warming by 15 to 78% over the next century (IPCC, 2019). In order to plan mitigation strategies, evidence for mangrove destruction is useful publication for proving the effects of climate change; NDVI monitors change overtime, therefore this is an ideal tool for this. Subsequently, comparisons can be made using NDVI data, such as to crop yields.

Satellite imagery of NDVI poses some drawbacks which have been considered for this study. It is essential when measuring vegetation change on a large temporal scale (not seasonally), the images must be from the same (±1) month. This avoids seasonal differences, such as leaf cover and cyclones, which may produce inaccurate annual NDVI values. Soil moisture can distort values as wetter soil is darker, so NDVI can appear to change as a result of seasonal soil moisture changes and not because of vegetation cover (Pettorelli, 2013). In figure 4, insignificant vegetation change is disregarded due to small-scale variations or no change at all.

Cloud cover can create shadows and scattering (radiating waves change direction of travel when contacting particles and molecules in the atmosphere), leading to possible inaccurate NDVI values as pixel brightness can reduce (Tanre et al, 1992). Cloud cover is thick in tropical regions, therefore <10% cloud cover is needed when mapping Bangladesh. Striping is a remote-sensing anomaly where visible lines appear on the image for a number of reasons, but particularly internal calibration problems of sensors for Landsat Multispectral Scanner imaging (Tsai and Chen, 2008). Striping is visible on figure 6, though has no serious implication on the image. In addition to the high spatial resolution of Landsat-5, the shallow topography of the study area improves NDVI accuracy as few shadows are created from physical and man-made structures on the surface. Therefore, if the images are taken from an oblique angle, shadowing is less likely to influence NDVI values (Thomas, 1997).

5. Conclusions
Since NDVI is a widely used indicator to measure changes in vegetation cover spatially and temporally, it was used to create a false colour composite map of the BRD mangroves in 1988 and 2010. NDVI assessed photosynthetic capacity of vegetation by measuring pixel reflectance at different wavelengths, with healthy, increasing vegetation showing a peak in visible green. Therefore, NDVI was mapped in figure 4 to highlight vegetation areas with a percentage increase or decrease. This data was mapped to accurately observe mangrove cover dynamics as an impact of climate change in the study area from 1988 to 2010.

The study area experienced a 2.79% significant decrease and a 3.04% significant increase in mangrove cover from 1988 to 2010. From scientific literature and similar studies, the significant decrease was likely due anthropogenic activity contributing to global       warming (sea level rise and storm surges), irrigation and dam creation thus disrupting supporting ecosystem services. On the other hand, the significant increase is likely due to mangrove restoration schemes. However, net change of the whole study area and local in-the-field research is not significant enough to make definitive judgement on the cause of increase and decrease in mangrove cover. This research can be utilised for showing the effects of anthropogenically-induced climate change on mangrove ecosystems in the future.

References

Al-Nafisi, R.S., Al-Ghadban, A., Gharib, I. and Bhat, N.R., 2009. Positive impacts of mangrove plantations on Kuwait’s coastal environment. European Journal of Scientific Research, 26(4), 510-521.

Alongi, D.M., 2015. The impact of climate change on mangrove forests. Current Climate Change Reports, 1(1), 30-39.

Asbridge, E., Lucas, R., Ticehurst, C., Bunting, P., 2016. Mangrove response to environmental change in Australia’s Gulf of Carpentaria. Ecology and evolution, 6(11), 3523-3539.

Dasgupta, S., Islam, M.S., Huq, M., Huque Khan, Z. and Hasib, M.R., 2019. Quantifying the protective capacity of mangroves from storm surges in coastal Bangladesh. PloS one, 14(3).

Dyurgerov, M. B. and Meier, M. E., 1997. Year-to-year fluctuations of global mass balance of small glaciers and their contributions to sea-level changes, Arct. Alp. Res, 29(4), 392-402.

Ericson, J.P., Vörösmarty, C.J., Dingman, S.L., Ward, L.G. and Meybeck, M., 2006. Effective sea-level rise and deltas: Causes of change and human dimension implications. Global and Planetary Change, 50(1-2), 63-82.

Hamylton, S. M., 2017. Spatial analysis of coastal environments. Cambridge University Press, 2017, 5, 133.

Hu, W., Wang, Y., Zhang, D., Yu, W., Chen, G., Xie, T., Liu, Z., Ma, Z., Du, J., Chao, B. and Lei, G., 2020. Mapping the potential of mangrove forest restoration based on species distribution models: A case study in China. Science of The Total Environment, 748, 142321.

Iftekhar, M.S. and Islam, M.R., 2004. Managing mangroves in Bangladesh: A strategy analysis. Journal of Coastal Conservation, 10(1), 139-146.

IPCC., 2019. Summary for Policymakers. In: IPCC Special Report on the Ocean and Cryosphere in a Changing Climate. IPCC.

Islam, M.A. and Ahmed, P., 2017. Prediction of the Population of Bangladesh, Using Logistic Model. International Journal of Applied Mathematics & Statistical Sciences (IJAMSS), 6(6), 37-50.usgs

Islam, M.M., Borgqvist, H. and Kumar, L., 2019. Monitoring Mangrove forest landcover changes in the coastline of Bangladesh from 1976 to 2015. Geocarto International, 34(13), 1458-1476.

Jensen, J.R., 2005. Introductory Digital Image Processing: A Remote Sensing Perspective. 3rd ed. Prentice-Hall Series in Geographic Information Sciences. Upper Saddle River, NJ: Pearson Prentice Hall.

Lal, S., 2020. Mathematical modelling of Population forecasting in India. Interdiscip. Cycle Res, 12(1), 275-283.

Lillesand, T.M., Kiefer, R.W., Chipman, J.W., 2015. Remote sensing and image interpretation. Hoboken, NJ: Wiley, 1, 1-84.

Loughland, R., Butt, S.J. and Nithyanandan, M., 2020. Establishment of mangrove ecosystems on man-made islands in Kuwait: Sustainable outcomes in a challenging and changing environment. Aquatic Botany, 167, 103273.

Morawitz, D.F., Blewett, T.M., Cohen, A. and Alberti, M., 2006. Using NDVI to assess vegetative land cover change in central Puget Sound. Environmental monitoring and assessment, 114(1-3), 85-106.

Pettorelli, N., 2013. The normalized difference vegetation index. Oxford University Press, 1-11.

Quern, C.A.S., Beneditti, C.A., Machado, N.G., da Silva, M.J.G., da Silva Querino, J.K.A., dos Santos Neto, L.A. and Biudes, M.S., 2016. Spatiotemporal NDVI, LAI, albedo, and surface temperature dynamics in the southwest of the Brazilian Amazon forest. Journal of Applied Remote Sensing, 10(2).

Reiche, J., Verbesselt, J., Heckmann, D. and Herold, M., 2015. Fusing Landsat and SAR time series to detect deforestation in the tropics. Remote Sensing of Environment, 156, 276-293.

Sahagian, D., 2000. Global physical effects of anthropogenic hydrological alterations: sea level and water redistribution. Global and Planetary Change, 25(1-2), 39-48.

Saintilan, N., Wilson, N.C., Rogers, K., Rajkaran, A. and Krauss, K.W., 2014. Mangrove expansion and salt marsh decline at mangrove poleward limits. Global change biology, 20(1), 147-157.

Santini, N.S., Reef, R., Lockington, D.A. and Lovelock, C.E., 2015. The use of fresh and saline water sources by the mangrove Avicennia marina. Hydrobiologia, 745(1), 59-68.

Saravanan, R., Jegankumar., Selvaraj, A., Jennifer, J.J. and Parthasarathy, K.S.S., 2019. Utility of Landsat Data for Assessing Mangrove Degradation in Muthupet Lagoon, South India. Elsevier. 20, 471-484.

Tanre, D., Holben, B.N. and Kaufman, Y.J., 1992. Atmospheric correction algorithm for NOAA-AVHRR products: theory and application. IEEE Transactions on Geoscience and Remote Sensing, 30(2), 231-248.

Thomas, W., 1997. A three-dimensional model for calculating reflection functions of inhomogeneous and orographically structured natural landscapes. Remote sensing of environment, 59(1), 44-63.

Tsai, F. and Chen, W.W., 2008. Striping noise detection and correction of remote sensing images. IEEE Transactions on Geoscience and remote sensing, 46(12), 4122-4131.

USGS, 2020. Earth Explorer. [online] available at: https://earthexplorer.usgs.gov/ (accessed 17/10/20).

World Bank., 2010. [Online] Bangladesh poverty map 2010-technical report. Dhaka: World Bank, Bangladesh Bureau of Statistics, and World Food Programme; 2014a. Available at: http://www-wds.worldbank.org/external/default/WDSContentServer/WDSP/IB/2014/11/11/000442464_20141111221335/Rendered/PDF/904870v20Bangl0LIC000Sept004020140.pdf (accessed 2/12/20).

Wylie, B.K., Johnson, D.A. Laca, E., Saliendra, N.Z., Gilmanov, T.G., Reed, B.C., Tieszen, L.L. and Worstell. B.B., 2003. Calibration of Remotely Sensed, Coarse Resolution NDVI to CO2 Fluxes in a Sagebrush-Steppe Ecosystem. Remote Sensing of Environment, 85(2), 243–255.
