The miracle of flight 370 of Malaysia Airlines has concerned affected families, airlines, forensic officers and authorities during spring and even summer of this year. In our “big-brother-is-watching-you” environment it was hard to believe that a plane could just get lost without being tracked by one of the satellites in space that observe our planet every day. The revealing truth is that the vast surfaces of the Earth cannot be reached or covered by signals and particularly remote places as oceans that are of less interest to our human activities remain blind corners. Since the Second World War, radar has been the primary method to monitor aircraft movements beyond the line of sight. But flight tracking technology isn’t as comprehensive as many might have thought, because current radar doesn’t have global coverage and if a transponder fails (as it was the case for the Malaysian flight) there is little that can be done.

ADS-B Technology

Automatic Dependent Surveillance – Broadcast (ADS–B) is a very recent cooperative surveillance technology, in which an aircraft determines its position via satellite navigation and periodically broadcasts it enabling it to be tracked. The information can be received by air traffic control ground stations as a replacement for secondary radar. It can also be received by other aircraft to provide situational awareness and allow self separation. ADS-B has become a widely accepted alternative for air traffic surveillance, providing critical information to controllers and pilots. The technology is mandatory in parts of the Australian airspace and will be mandatory for commercial aircrafts in Europe until 2018 and the USA until 2020. Although ADS-B is promising to improve plain tracking it is limited to land-based areas leaving considerable gaps over the ocean surfaces.

Aireone Alert worldwide available

Since some time, the plane tracking system “Aireone Alert” has been under development as an extension of ADS-B technology in combination with a new and already planned constellation of low orbiting telecommunication satellites. Aireone is anticipated to be fully operational in 2017. It will make available a global emergency tracking capability that will allow authorized agencies to request the location and last flight track of any ADS-B equipped aircraft that has lost communications with controllers, including over the oceans, poles and remote airspace. This service will be provided to authorized organizations as a public service, free of charge.

How does Aireone Alert work?
The service is going to use the already planned network of 66 low orbiting telecommunications satellites – called the Iridium NEXT satellite constellation – as ADS-B payload hosts retransmitting signals from ADS-B equipped aircrafts to air traffic controllers through newly installed Aireon Ground Facilities. Due to the wide spread constellation of satellites the service will be capable to track any ADS-B equipped aircraft worldwide including oceanic, polar desert and mountainous regions at real-time visibility. The aircraft tracking at real-time will also offer more flexibility to avoid weather, deviate from filed routes, optimize altitudes in trail and file more direct routes over the ocean. Full surveillance over oceanic and remote airspace will bring more efficient use of airspace, substantial fuel savings, fewer delays and will significantly enhance safety over large parts of the world. Already, Air Traffic Control Providers have committed to to deploying a ground-based ADS-B architecture that uses GPS satellite signals to give air traffic controllers and pilots an accurate, real-time display of air traffic. The use of ADS-B equipment in commercial aircrafts will be mandatory in Europe and the USA by 2018 and 2010, by 2018 Aireon will gradually change the way traffic crosses the North Atlantic through the implementation of oceanic surveillance.

Hopefully an inexplicable occurrence as the disappearance of an aircraft seen this spring will not happen again. Preparing this post, I was particularly impressed by the constellation of 66 low orbiting telecommunication satellites that will host the ADS-B technology regarding the interaction and coordination of the attuned orbits. Also, I thought that telecommunication satellites are only geostationary. Therefore, catch some information about the Iridium satellite constellation at the bottom.

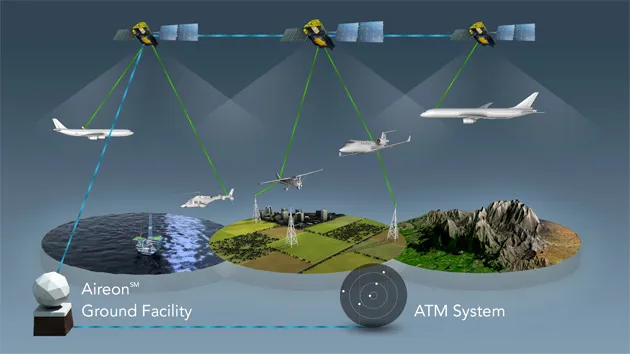

Aireon Flight Tracking System – overview

Iridium satellites
The Iridium satellites consist of a large group of telecommunication satellites providing voice and data coverage to satellite phones, pagers and integrated transceivers over Earth’s entire surface. The name derives from the Company Iridium Communications Inc. Even the actual constellation comprises 66 satellites that orbit at a distance of 781km around the Earth. Spare satellites are held in a spare orbit and are boosted into the correct altitude and put into service in case a satellite failes. The over-the-poles orbital design guarantees complete coverage even at very high latitudes around the poles.
The Iridium NEXT satellite constellation is a planned second-generation network of again 66 telecommunication satellites. Beside an enhanced data storage and improved bandwidth the NEXT generation satellites will incorporate data transmission and provide data link to other satellites in space enabling command and control of other space assets regardless of the position of ground stations and gateways. At the moment, satellites communicate with neighboring satellites via Ka band inter-satellite links, the satellites of NEXT generation will communicate at L-band data speeds of up to 1.5 Mbit/s and high-speed Ka-Band service of up to 8 Mbit/s. The Iridium NEXT-generation satellites will also incorporate an additional payload for Aireon tracking System making the Aireon Flight Tracking System possible.
The launch of the satellites will begin in 2015 and be finished in 2017, when the entire new constellation will be fully operational.

Source: Engadget, Aireon
