1. Irregular/difficult terrain
Getting a fixed GSD (Ground Sampling Distance) in terrain with irregular elevation might be tricky when you plan the flight at a fixed altitude. The actual pixel size across the whole survey area will differ. You should take it into account when planning the mission and select the right hardware and software for the job.
Most of the flight planning apps such as Pix4D or DroneDeploy are limited to fixed altitude flight paths, which makes it a little bit complex to plan flights over a hilly terrain like a quarry. It often requires capturing data separately on various attitudes resulting in the acquisition of much more data than needed and complicating the data processing. More advanced platforms such as PrecisionHawk or Sensefly offer so-called terrain tracking which allows flying on various attitudes during a single flight following applied Digital Terrain Model.
2. Too much sunlight
Nice sunlight and shadows look great in drone videos, but they have a terrible influence on the photogrammetric products regarding the usability but also stitching the images and creating the models. When images are overexposed or underexposed, the system cannot find tie points resulting in poor reconstruction. During the sunny day always try to capture the data as close as possible to solar noon. In some situations, artificial light can be used to solve the problem.
3. The larger images, the better
Size matters. The larger the images, the easier it is to process them and the more accurate the reconstruction. Stitching images can be tricky, especially in difficult wind and sun conditions, so the fewer images there are the better for the accuracy of a model. The size of the images depends on the drone camera parameters such as resolution, focal length, and sensor size (CCD array).
4. The right sensor
If you think about survey-grade accuracy of your drone survey you should consider selecting a sensor with the right lens. Typical cameras on board of UAVs are not real mapping sensors and do not offer the top level of quality. Nonetheless when each pixel matters, one should use so-called metric cameras, which are built to minimize distortions and so that the internal geometry of the camera would hold its characteristics despite harsh working conditions and changing operational environments.
5. RTK/PPK drone

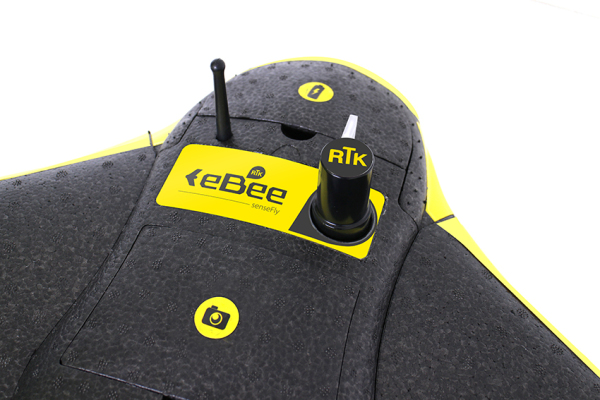

When processing the drone images into highly accurate photogrammetric products, precise information about a geographic position of each image is key. Regular GNSS sensors are accurate up to several meters. Using RTK (Real-Time Kinematic) or PPK (Post Processing Kinematic) technologies allow achieving the positioning accuracy even below 50cm, which makes a significant difference for survey-grade products. Depending on the task you can you drone such as DJI Phantom 4 Pro RTK, or WingtraOne.
6. Ground Control Points
Many drone platforms providers claim that their RTK systems do not require any GCPs (Ground Control Points) measured on the ground to achieve high absolute accuracy. If you think about achieving the accuracy of 2-3 GSD with 1cm pixel size, adding GCPs to the survey is a must. In fact, it’s a key not only to have them but also to distribute them accordingly across the whole survey area.
Source: PrecisionMapper
7. Control over the processing
Online platforms for data processing such as DroneDeploy or PrecisionMapper are really awesome. However, if you are serious about achieving survey-grade accuracy you must have the full control over the process and often perform some manual adjustments like adding tie points or changing processing parameters. In order to do it you shouldn’t rely on online processing platforms, but invest in a full desktop version of Pix4D or AgiSoft and do the processing activities with proper attention to detail.
8. Stability of the flight
Last but not least the more stable the flight, the better overall accuracy you will get. The stability of the flight is reflected especially in the vertical positional accuracy. The stability of the flight depends on the wind and the drone platform. Typically fixed-wing drones offer higher stability than multirotors.
#Business
Next article
Autonomous vehicles haven’t been around for long but it certainly feels like they are already taking over our streets. But in reality, only 35 cities across the world are playing host to autonomous vehicles with their pilot projects – 35 cities!
Is your city getting ready for autonomous vehicles?

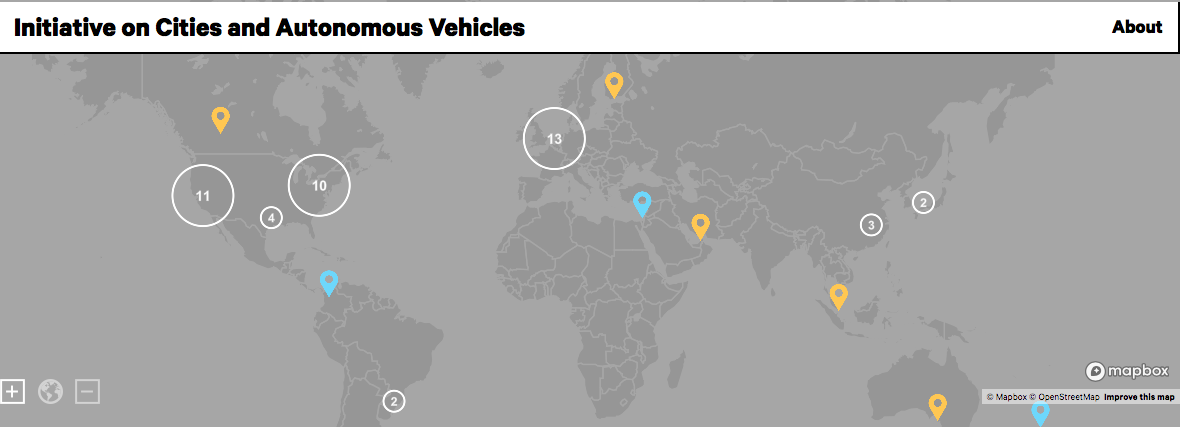

The “Initiative on Cities and Autonomous Vehicles“, a joint effort between Bloomberg Philanthropies and the Aspen Institute is an interesting and detailed snapshot of autonomous vehicle testing across the world. The Atlas is the first of its kind inventory of how cities across the world are preparing for the autonomous vehicle era.
