Planet launches AI-based platform, automating satellite imagery analytics

road detection

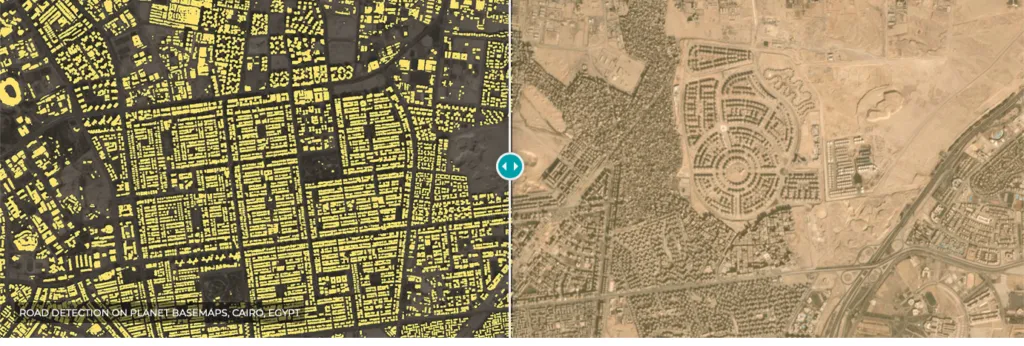

Road-detection on Planet Basemaps, Cairo, Egypt

With the rise of swarms of micro satellites, the Earth Observation industry is getting a new level of detail. Thanks to Planet‘s 3m spatial resolution, the value of having a fleet of satellites lies now not in higher spatial resolution, but in higher temporal resolution. Planet’s satellites capture the imagery of the entire earth a few times a day. This kind of advancement in satellite imagery is opening up whole new areas of opportunity and new use cases. However, a point of concern has been-‘how to extract the relevant information from these images at scale?’ The industry has been working on advanced automated analytics and a lot has been developed but it has never been commoditized to be widely used by geogeeks and analysts around the world. As a solution to the problem, Planet launches AI-based platform, automating satellite imagery analytics.

The new release, named ‘Planet Analytics Feeds’, makes automatic analysis of satellite imagery now possible. With the new flagship Analytics Feeds, Planet Analytics is able to provide its users automated road, building, and vessel detections over their areas of interest. The users can leverage these feeds on top of the Planet imagery products and achieve global-scale insights, no custom builds are required.

Tracking specific objects or features often turns out to be an expensive affair for organisations using imagery. This kind of analysis often becomes costly, time consuming and labor-intensive if done manually. With Planet Analytics Feeds, users can say goodbye to such issues.

Using  machine learning and cloud computing, users of Planet Analytics are able to select an area to monitor and automatically get detections for roads, buildings and vessels for a particular day or month, within minutes. For instance, using Planet Analytics Vessel Detection Feed, a user can track and locate ships that have their automatic identification system (AIS) signals turned off. This could lead to detection of illegal cargo. Using the Building Detection Feed, an organization can easily detect new constructions within a specific area.

Users can unlock deeper insights from Planet imagery by leveraging these Feeds. They can leverage the Feeds anywhere in the world and backward in time with Planet’s unprecedented dataset of imagery.

What Planet Analytics Feeds Offer in Nutshell

Building Detection
  • Update maps and charts
  • Monitor infrastructure and construction
  • Track urban growth

Road Detection

  • Update maps and charts
  • Improve routing of fleets and resources
  • Get competitive intelligence in remote locations

road detection planet analytics

Vessel Detection

  • Monitor patterns of life
  • Fill in data gaps
  • Identify vessels that have gone dark

vessel detection in planet analytics

Say thanks for this article (0)
The community is supported by:
Become a sponsor
#Business
#Business
Geo Addressing Decoded Part 1: Why Does Geo Addressing Matter?
Aleks Buczkowski 04.16.2024
AWESOME 6
#Business #GeoDev
3 Pathways For Integrating Planet Data Into Your GIS Workflow
Avatar for Sponsored Article
Sponsored Article 08.12.2024
AWESOME 1
#Business #Environment
Major milestone achieved towards building a green supply chain with the Supply Chain Data Partnership’s new global location register
Nikita Marwaha Kraetzig 12.8.2023
AWESOME 1
Next article
#Business #Featured

Drones and Lidar – A Match Made in Cartometric Modeling Heaven

After consecutive hurricanes carved their way through the Gulf of Mexico in August and September of 2017, of paramount importance was restoring the crippled utility infrastructure. This wasn’t just a matter of getting the lights back on in time to catch Doctor Who. For some, it would be a matter of life and death.

But with power lines strung across thousands of acres, many of which were either densely vegetated or flooded, conducting mass inspections with ground teams would be next to impossible. That’s when lidar-equipped drones hit the skies.

The UAVs were able to survey flood-ravaged land and collect infrastructure maps detailed enough to visualize power lines. The structural integrity of cell towers was assessed and ground teams were dispensed accordingly to restore communications where they were most needed. Had the hurricanes hit ten years earlier, the recovery process would have looked far different.

A Brief History of Lidar

Lidar (a portmanteau of the words light and radar; radar being an acronym for “RAdio Detection And Ranging, hence the confusion regarding whether lidar is an acronym) has actually been around in its simplest form since shortly after the invention of the laser in the 1960s. The fundamental concept works much like radar in that it identifies the location of objects by sending out electromagnetic waves and measuring the amount of time it takes for reflections to return to the sensor. But instead of operating in the radio or microwave wavelengths, lidar operates in a little neighborhood of the electromagnetic spectrum known as light.

While the technology has existed for some time, until recently one would have needed a budget resembling that of a ballistic missile program to get their grubby hands on it. The systems have traditionally cost upwards of hundreds of thousands of dollars and primarily been deployed from manned aerial vehicles, making the scope of their application limited to large scale operations.

The cost isn’t surprising. In addition to high resolution laser rangefinding sensors, mobile lidar systems must employ inertial navigation systems integrated with GNSS receivers to compensate for the immense complexity motion introduces to the measuring process. Measuring laser light reflections while bobbing around in the air could be likened to playing an intense game of racquetball on a trampoline; it takes a lot of coordination. But the results are worth it: three dimensional cartographic models of unrivaled precision that can be collected quickly and independently of natural lighting conditions.

Lidar + Drones = A Match Made In Cartometric Modeling Heaven

A recent offering like the Velodyne Puck LITE lidar sensor comes in at a mere 600 grams and can be had for well below ten thousand dollars. The size and weight is intended to be mountable to a platform like the DJI Matrice 600 Pro. With costs dropping to accessible ranges and lighter weight payloads that can now be deployed from a drone, an entirely new industry is beginning to open up. Already, lidar-equipped drones are being deployed for agriculture, surveying, construction projects, infrastructure maintenance and even hydrographic analysis of ski slopes for assessing avalanche conditions.

A Promising Future

The economic and environmental benefits are manifold. According to a report by the World Bank, approximately 1.3 billion tons of solid waste are generated every year by the construction industry alone. However, a large amount of this waste can be prevented if construction managers are better equipped for resource management. One of the most exciting uses of lidar-equipped construction drones is volumetric analysis of material stockpiles. Aerial volumetric analysis makes it possible to quickly survey material stockpiles scattered throughout a jobsite and calculate their volumes precisely. This is not only promises to reduce landfill bulk and waste, it reaps an enormous cost savings. This means you can expect the construction industry to soon become a big customer for lidar-equipped drones as project managers need little incentive to save more time and money.

Other industries under the eye of drone-deployed lidar include high tech agriculture, forestry, flood and hydrographic modeling, mining and even video game map generation. While photogrammetry can do many of the same tasks by comparing overlapping images to make educated guesses at altitudes, lidar remains king when it comes to precision due to it’s truly 3d data points. These data points are combined into a “point cloud” which, aside from providing precise data for the aforementioned industries, looks pretty darn cool.

Point Cloud Samples

Not ones to tease, we thought it would be cool to show you a few point cloud samples that you can play around with yourself right from the comfort of your browser.

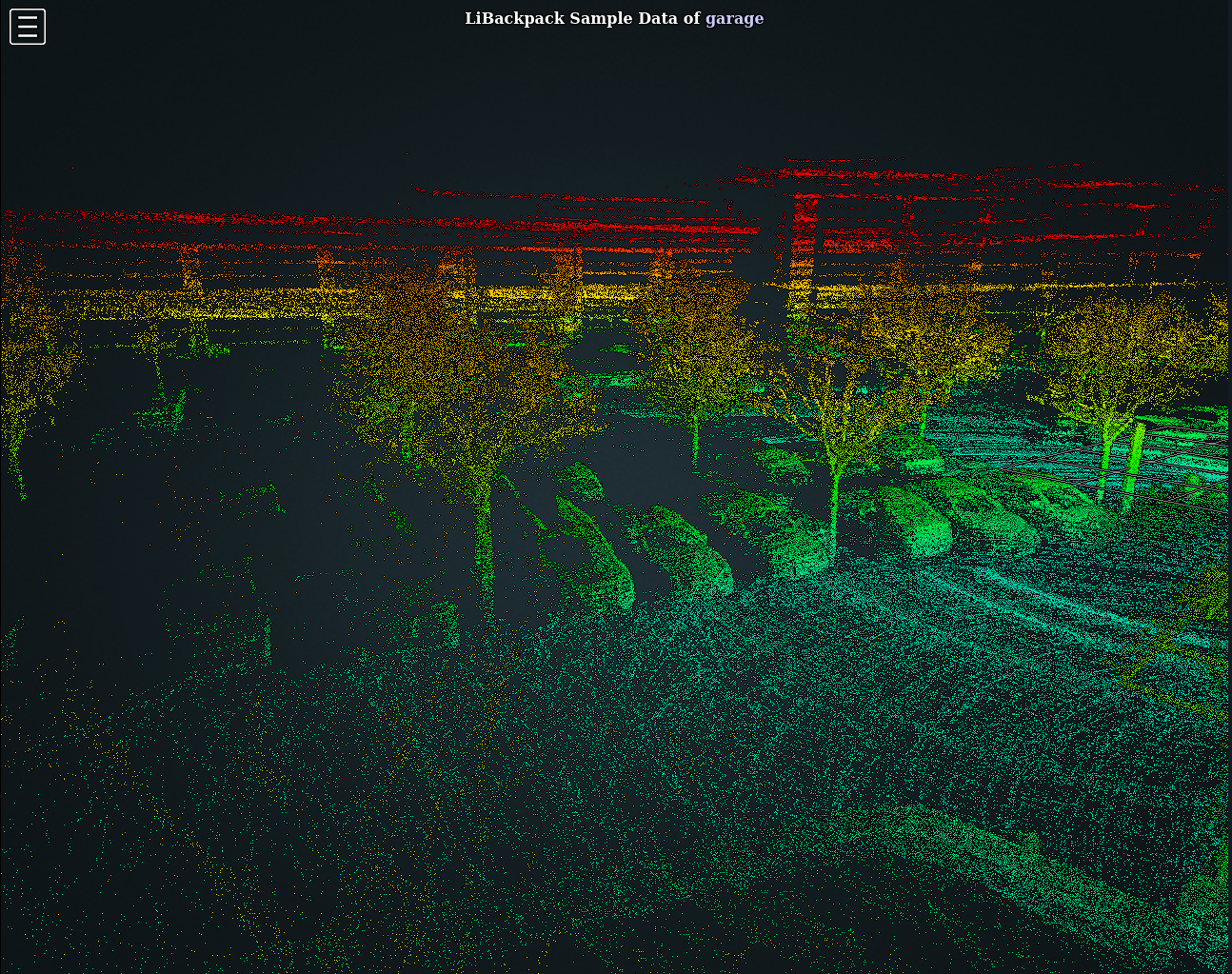

Image courtesy of greenvalleyintl.com
