Coral reefs belong to one of the most anthropogenic impacted ecosystems that have been terribly suffering damage while offering great wealth of habitats, diversity of species and limitless environmental services. Examples of the destructive forces can be oil spill from petroleum platforms, considerable changes in ocean temperature and an increase in the incidence and the intensity of hurricanes as an effect of climate change causing bleaching an finally a decrease of coral colonies. The current threats and at the same time the worldwide importance of coral reefs have generated methods to develop this kind of ecosystem on a large scale, whereas remote sensing means have become important to map underwater habitats specifically with regard to the remote location of coral reefs, their vast extension and then shallow waters making navigation dangerous.
In an article in December I reported on the first bathymetry of the entire Great Barrier Reef, which was accomplished by the German-based company EOMAP. Right at the beginning of the new year they announced another achievement, which is the first high resolution seafloor and bathymetry survey of the Mexican Riviera Maya including a benthic map and environmental baseline study. I obtained a communiqué including facts and some background information about the interesting initiative along the Mexican coast. Therefore, let’s jump into those tropic waters!

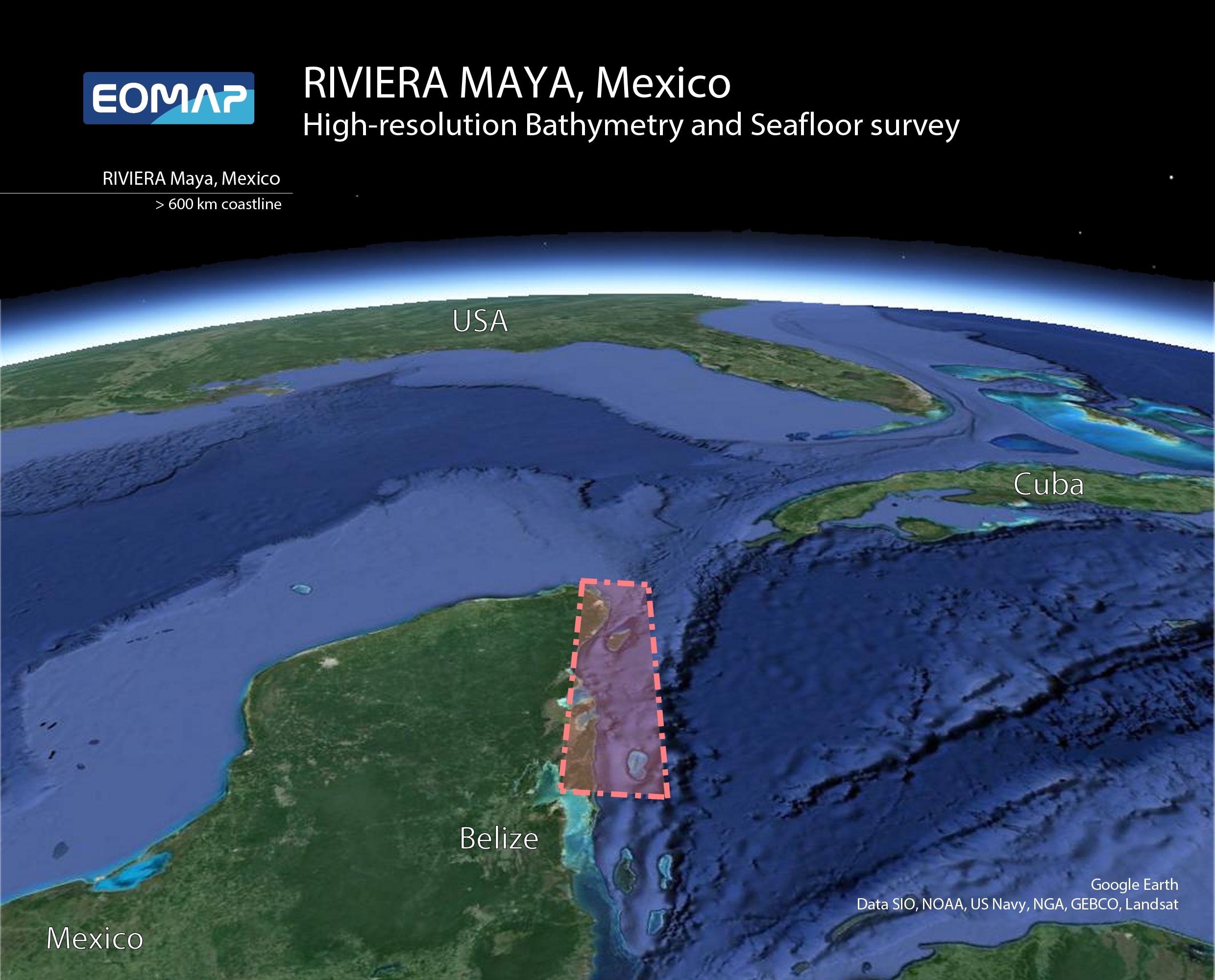

Surveyed stripe along the coast of the Yucatan Peninsula, Mexico.
THE FIRST HIGH RESOLUTION SEAFLOOR AND BATHYMETRY SURVEY ON THE MEXICAN RIVIERA MAYA
EOMAP, a value-added service provider of satellite data was contracted by the Mexican National Commission for Knowledge and Use of Biodiversity (CONABIO) to deliver high resolution environmental information for the entire Maya coast. This coastline extends 600 km south from the Yucatan Peninsula to the border of Belize. In total more than 5000 sq km of the marine environment, including ecosystems such as corals, seagrass and mangroves, were mapped in water depths down to 25 m.
“The fine-scale spatial information, derived for the entire coastline, will serve as the first baseline dataset of the Maya coast, and will help to understand and preserve the vulnerable ecosystems.” Said Dr. Thomas Heege, CEO of EOMAP GmbH & Co.
CONABIO is a permanent interdepartmental commission promoting, coordinating and carrying out activities aimed to increase awareness of biodiversity and its conservation and sustainable use. To fulfill its mission CONABIO relies on accurate and fine scale baseline maps for land and sea. For Mexico’s extended coastlines, traditional surveys were by far too time consuming and expensive and CONABIO therefore decided to use a satellite-based approach. In early 2012, EOMAP’s technology was applied for bathymetry and seafloor mapping, using the highest spatial multi-spectral resolution satellite data available (DigitalGlobe’s WorldView-2 eight-band sensor).
“EOMAP was selected because we have seen their satellite-derived, high resolution seafloor and bathymetry products in very successful, previous projects. The services and products delivered for the Mexican Maya coast are exceptional and will be fundamental in developing our seafloor habitat baseline. Such a baseline is critical in assessing short and long term impacts to the environment from both man-made and natural causes.” Said Dr. Rainer Ressl, Director Geomatics Department of CONABIO.
The project was completed in three phases: satellite data was first ordered and checked for its mapping feasibility, then EOMAP delivered spatial datasets of bathymetry and seafloor properties, and finally the validated habitat classification was performed.
“Mapping the seafloor habitats and bathymetric information for such extended areas is of growing interest for both environmental as well as engineering applications. Our algorithms are operational and standardized, enabling us to survey, map and monitor extended or inaccessible areas at a fraction of the cost of traditional survey methods,” said Dr. Magnus Wettle, Chief Scientist of EOMAP Asia Pacific.
EOMAP GmbH & Co. KG has been delivering satellite-derived bathymetry and seafloor habitat services worldwide for a growing number of customers in the oil and gas, engineering, environmental and hydrographic sectors.

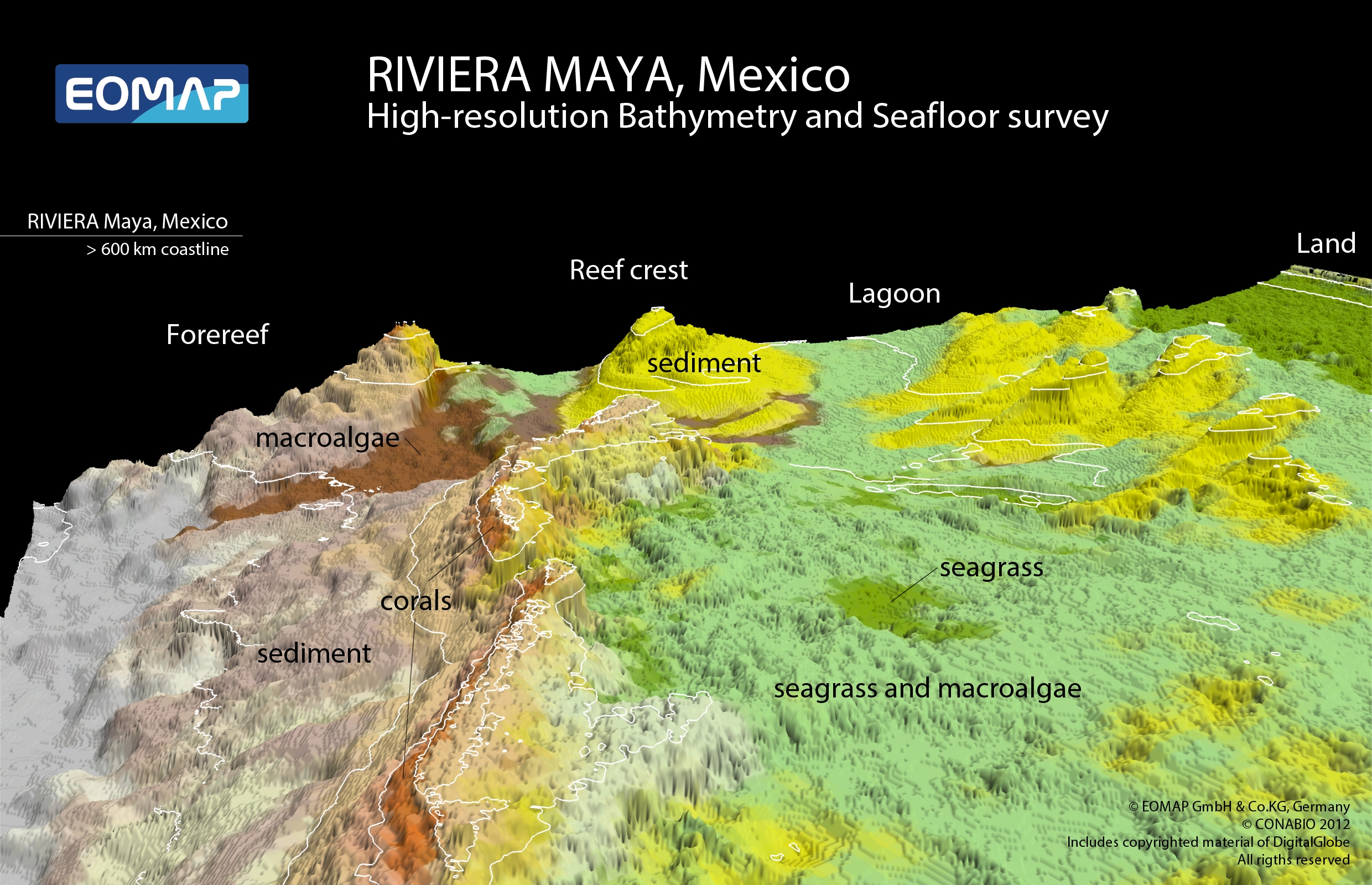

Coral protection – EOMAP, Mexico

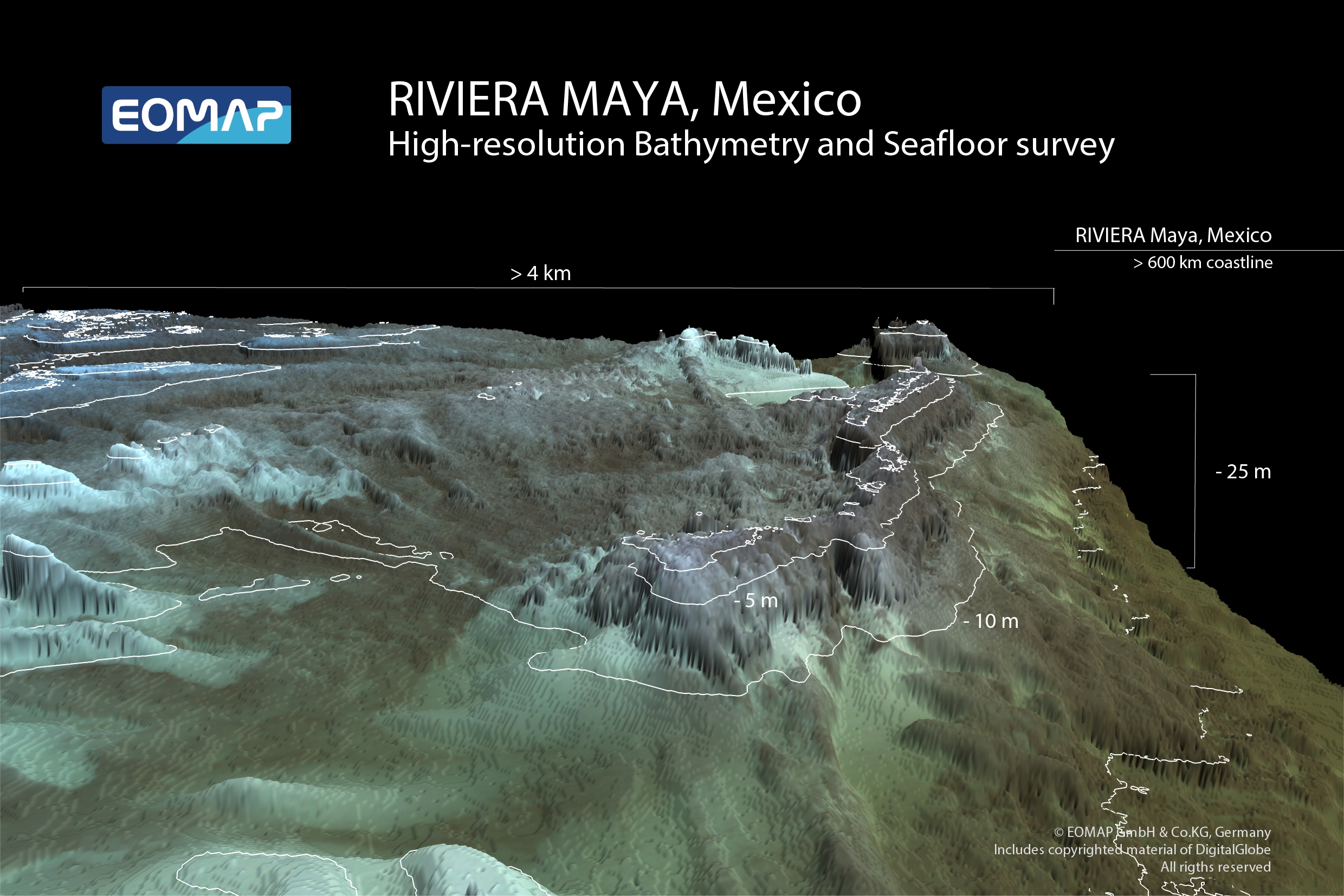

Coral protection – EOMAP, Mexico
For more information on EOMAP, see www.eomap.com or email info@eomap.com.
Did you like this post about coral protection? Read more and subscribe to our monthly newsletter!
#
